Wireframes

The following low-fidelity wireframes define the three primary views of the EOHA platform. They establish layout structure, navigation hierarchy, and component placement without prescribing visual design.

---

Three-page layout overview

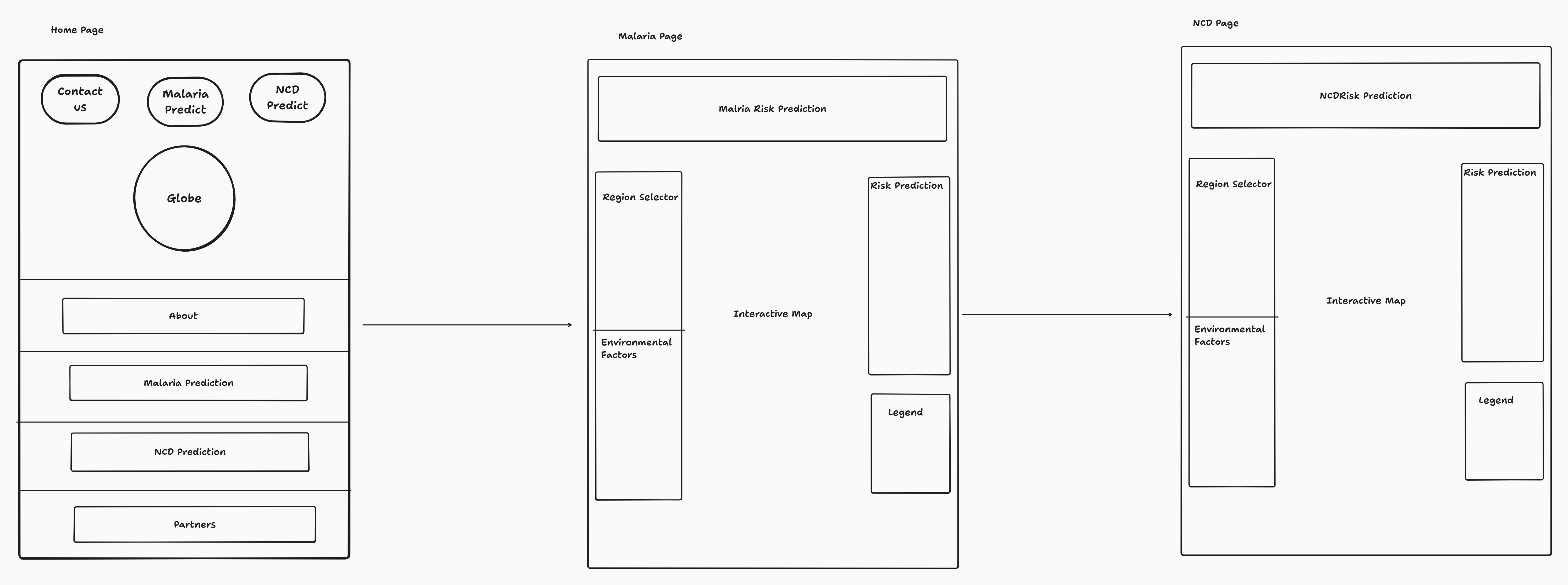

The wireframe below shows all three pages and the navigation flow between them:

Home Page → Malaria Prediction Page → NCD Prediction Page

---

Page breakdown

Home Page

Component	Purpose
Navigation bar	Links to Contact Us, Malaria Predict, NCD Predict
Globe visualisation	Entry-point visual — clickable world/Africa map
Section links	About, Malaria Prediction, NCD Prediction, Partners

The home page acts as an entry point and orientation hub. Users navigate to the risk prediction modules via the nav buttons or the section link list.

---

Malaria Prediction Page

Component	Position	Purpose
Page title	Top	"Malaria Risk Prediction"
Region Selector	Left panel, top	Dropdown / search for municipality/ward
Environmental Factors	Left panel, bottom	Toggles for NDWI, LST, soil moisture, NDVI overlays
Interactive Map	Centre	Leaflet choropleth — main risk visualisation
Risk Prediction	Right panel	Score display, confidence interval, forecast date
Legend	Right panel, bottom	Colour key: High / Moderate / Low

---

NCD Prediction Page

Component	Position	Purpose
Page title	Top	"NCD Risk Prediction"
Region Selector	Left panel, top	Same zone selector as Malaria page
Environmental Factors	Left panel, bottom	Toggles for NO2, SO2, aerosol, UV, LST overlays
Interactive Map	Centre	Leaflet choropleth for NCD risk
Risk Prediction	Right panel	NCD exposure score, primary category
Legend	Right panel, bottom	Colour key

---

Layout continuity

The Malaria and NCD pages share an identical layout structure to minimise context-switching for users monitoring both disease streams simultaneously. Shared components (Region Selector, Interactive Map, Legend) use the same interaction patterns across both pages.
